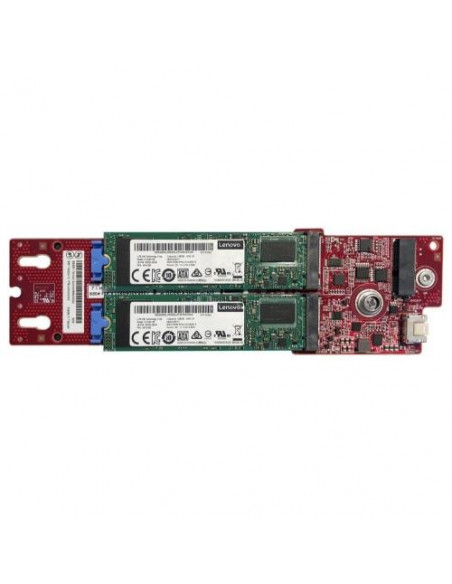

ThinkSystem M.2 SATA 2-Bay RAID Enablement Kit - 4Y37A09739
| Caratteristiche | |
|---|---|
| Descrizione | SATA RAID M.2 Module, which supports two SATA M.2 drives and includes integrated Marvell RAID functionality; available as the ThinkSystem M.2 SATA 2-Bay RAID Enablement Kit, 4Y37A09739 The M.2 SATA 2-Bay RAID Enablement Kit (4Y37A09739) has the following features: • Supports one or two SATA M.2 drives • Support 42mm, 60mm, 80mm and 110mm drive form factors (2242, 2260, 2280 and 22110) • RAID support via an onboard Marvell 88SE9230 SATA RAID Controller • Support JBOD, RAID-0 and RAID-1 (RAID support requires two M.2 drives) • PCIe 2.0 x2 host interface; 6Gbps SATA connection to the drives • Management and configuration support via UEFI and OS-based tools • Supports monitoring and reporting of events and temperature through I2C • Firmware update via Lenovo firmware update tools |
